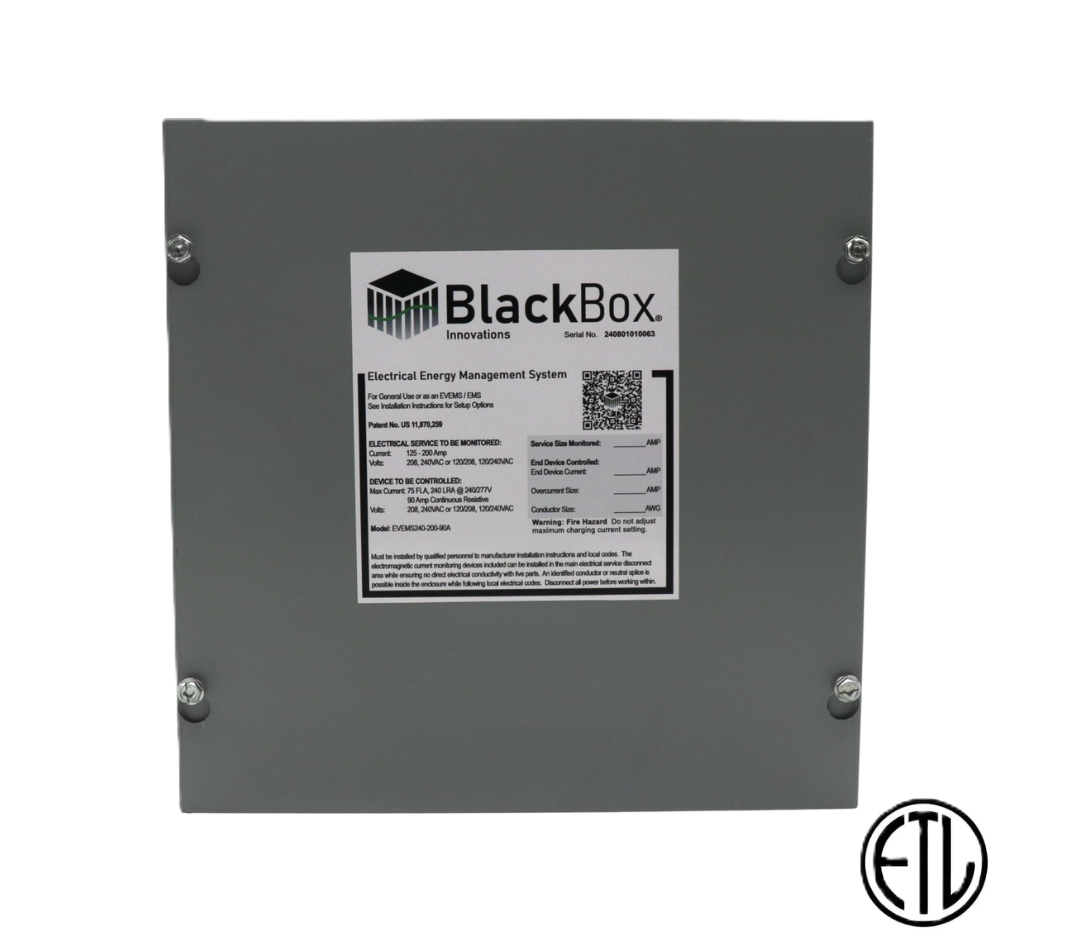

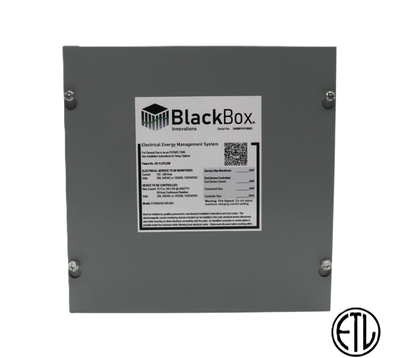

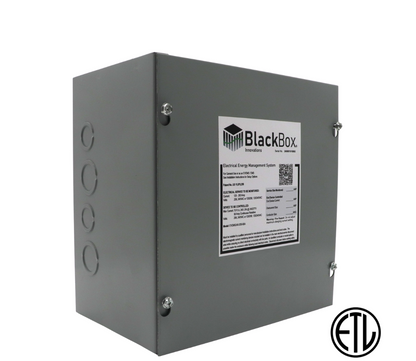

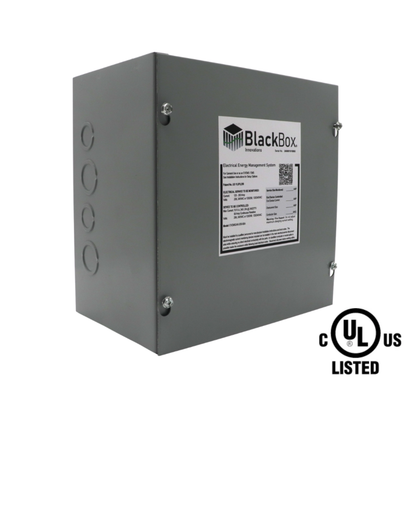

Energy Manager for Service Sizes 125 - 200A, and up to a 100A EV Charger or 100A End Device.

Our patented power control system or EV energy management system (PCS/EMS/EVEMS) provides the ability to install up to a 100A electric vehicle charger or 100A continuos draw end device on an existing electrical service that would otherwise cause overloading issues. It is available in single phase and 3 phase options. No need for an electrical panel or service upgrade. Compatible with all major EV manufacturers and charge rates and a wide variety of other electrical devices.

KEY FEATURES

- Will manage up to 2 end devices on 1 electrical service
- Fast and easy to install: 30-45 min.
- Small size fits in tight areas around electrical panels (8" x 8" x 4").
- Certified for general use or as a PCS/EMS by UL for use in the US and Canada
- Longest charge times due to intelligent current monitoring.
- Single Circuit Load Sharing Optional Settings
- No need to disconnect the main service wires.
- No extra breakers needed.
- Solar grid tie installation compatible.
- Real-time reading of the total power consumption of the electrical panel.
- Capable of reducing peek power demand utility costs to reduce your electrical bill
- Remote shutdown override equipped

- Advanced Safety Features such as Thermal Run Away Shutdown and Overcurrent protection

UL 3141, UL 1741, ULC-ORD-3141, CSA 22.2 14

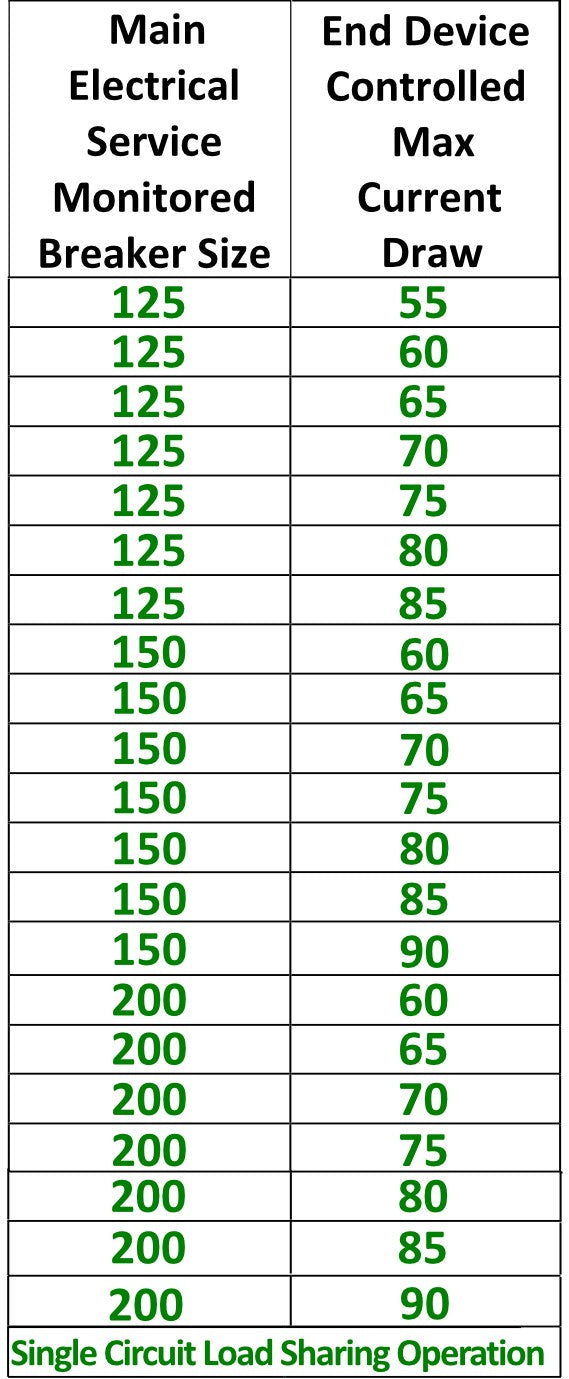

These can be used to control general-purpose devices that can tolerate load shedding with the same settings above, up to a max of 100A or 90 FLA. When using with general-purpose devices select the settings row with the rating just above what the device rating is.

Both 80% and 100% rated EV breaker settings are available for most combinations.

PN: PCS-240-100-200

PN: EVEMS240-200-90A
