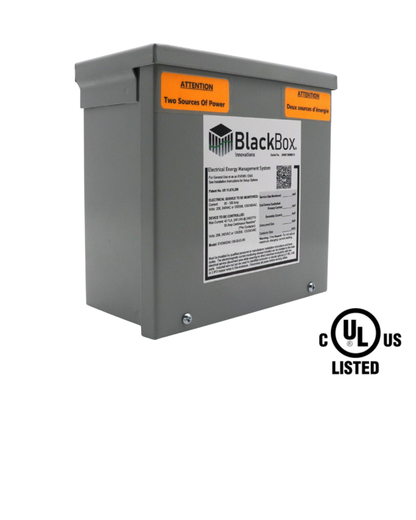

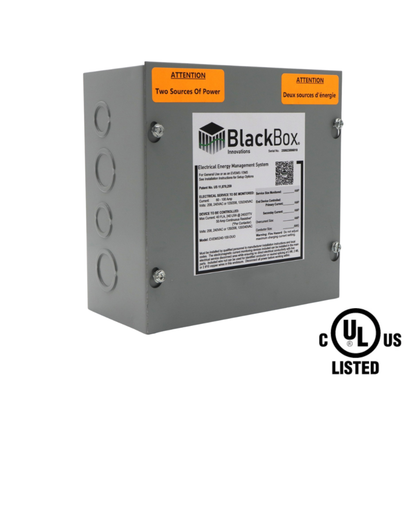

Dual Energy Manager for Service Sizes 125A - 200A, and up to TWO End Devices

Our patented power control system or EV energy management system (PCS/EVEMS) provides the ability to install up to two 11.5KW or 48A electric vehicle* chargers on an existing electrical service that would otherwise cause overloading issues. No need for an electrical panel or service upgrade. Compatible with all major EV manufacturers and charge rates.

This dual-energy manager is for service size 125A -200A and can control 2 end devices*, with one being priority and the other secondary, on 1 electrical service.

*Please see settings chart below or in the installation manual for setting options.

KEY FEATURES

- Will manage up to 2 end devices on 1 electrical service
- Fast and easy to install: 30-45 min.
- Small size fits in tight areas around electrical panels (8" x 8" x 4").
- Certified for general use or as a PCS/EMS by UL for use in the US and Canada
- Longest charge times due to intelligent current monitoring.
- Single Circuit Load Sharing Optional Settings
- No need to disconnect the main service wires.
- No extra breakers needed.
- Solar grid tie installation compatible.
- Real-time reading of the total power consumption of the electrical panel.
- Capable of reducing peek power demand utility costs to reduce your electrical bill
- Remote shutdown override equipped

- Advanced Safety Features such as Thermal Run Away Shutdown and Overcurrent protection

UL 3141, UL 1741, ULC-ORD-3141, CSA 22.2 14

These can be used to control up to 2 general-purpose devices that can tolerate load shedding, up to a max of 40FLA/50A per contactor. When using with general-purpose devices select the settings row with the rating just above what the device rating is.

• Proper planning is required for client satisfaction. See the installation instructions on page 7.

Installation Instructions

Specifications Sheet

PN: PCS-240-200-DUO & PCS-240-200-DUO-3R

Legacy PN: EVEMS240-200-DUO & EVEMS240-200-DUO-3R
