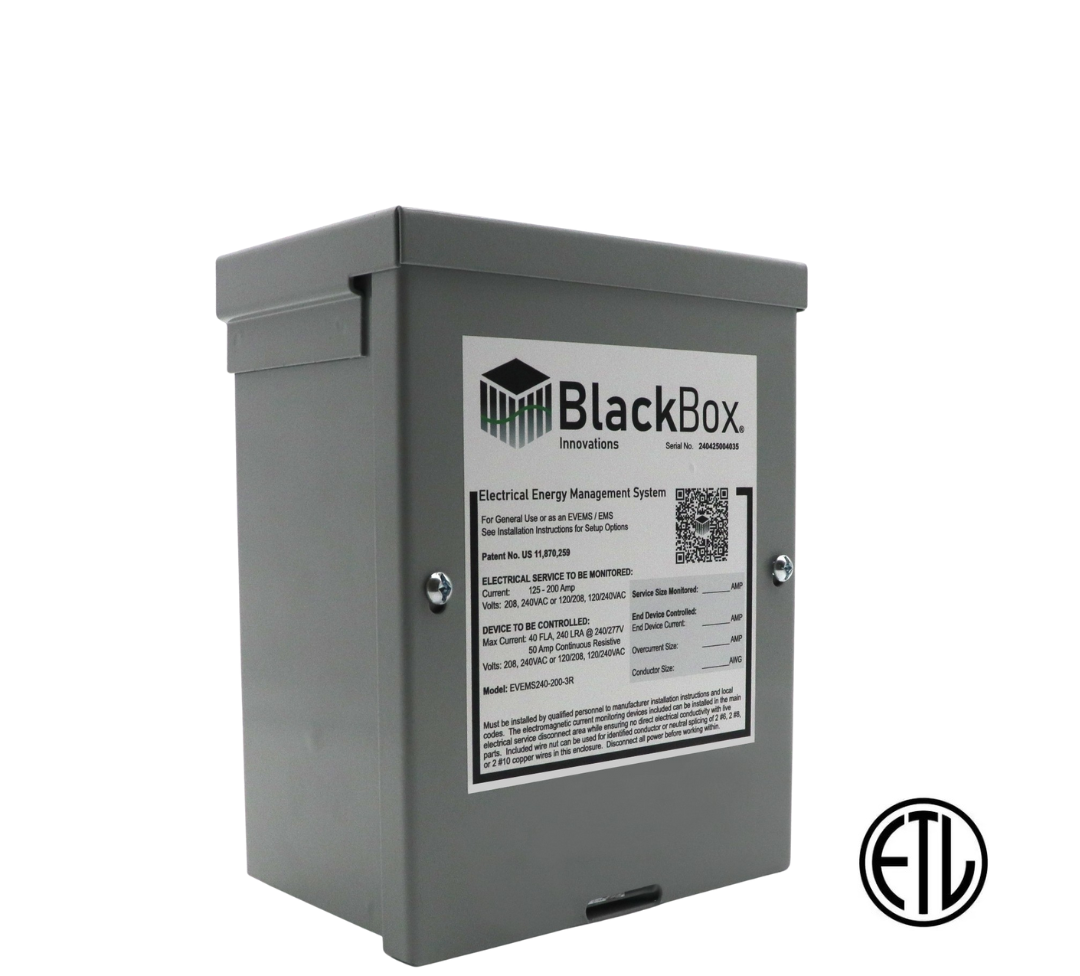

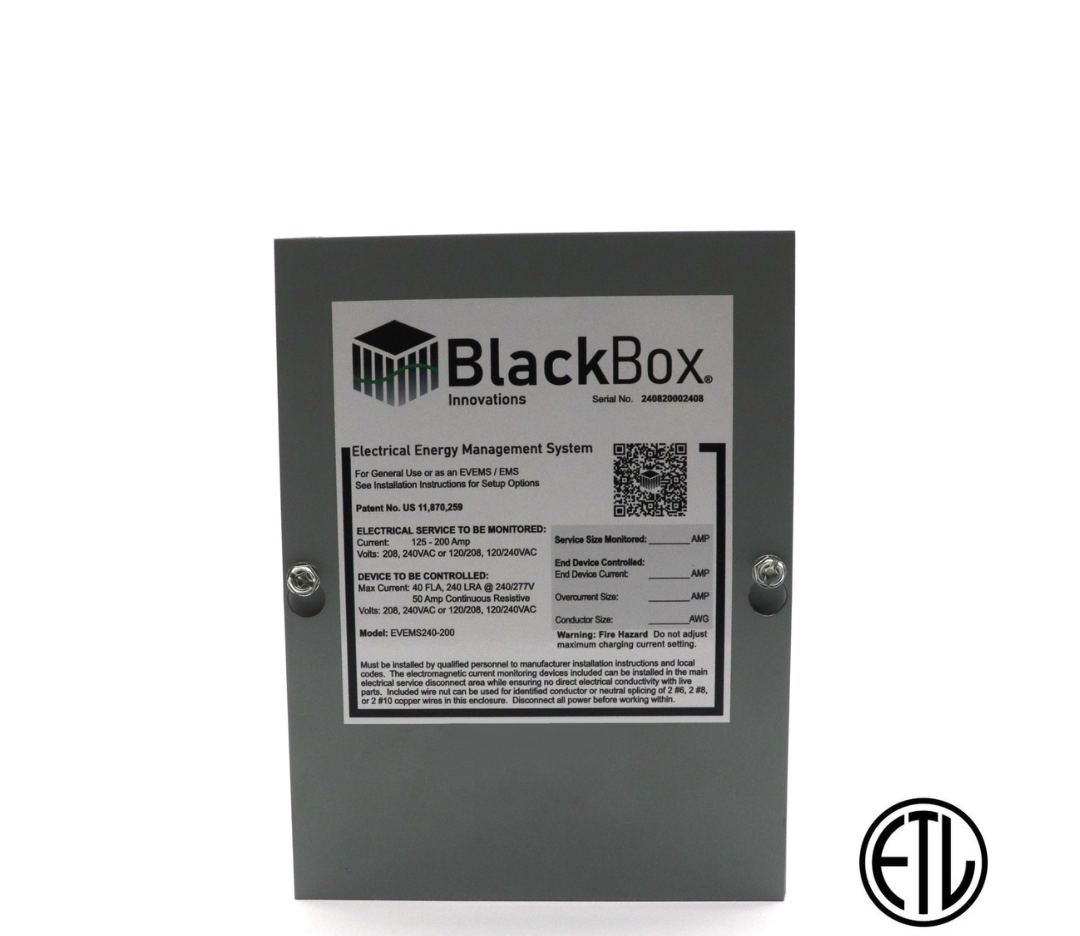

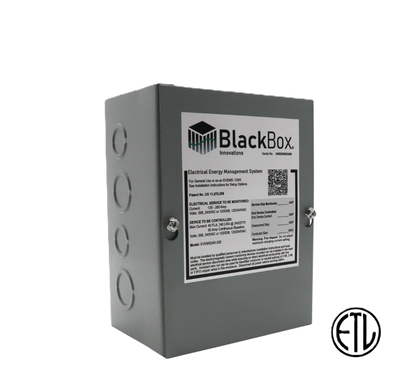

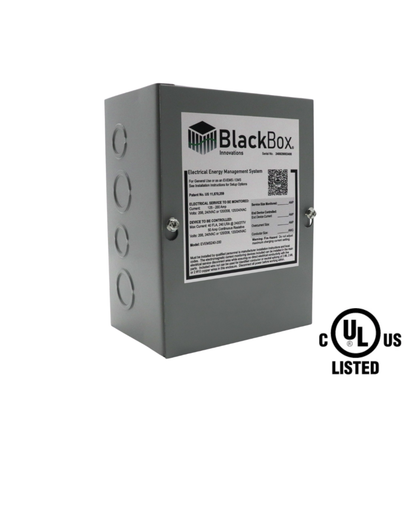

Energy Manager for Service Sizes 125 - 200A, and up to a 60A Charger or End Device

Our patented power control systems or EV energy management system (PCS/EVEMS) provides the ability to install up to an 11.5KW device or 48A electric vehicle charger on an existing electrical service that would otherwise cause overloading issues. No need for an electrical panel or service upgrade. Compatible with all major EV manufacturers and charge rates.

KEY FEATURES

- Will manage up to 2 end devices on 1 electrical service
- Fast and easy to install: 30-45 min.
- Small size fits in tight areas around electrical panels (8" x 8" x 4").
- Certified for general use or as a PCS/EMS by UL for use in the US and Canada
- Longest charge times due to intelligent current monitoring.
- Single Circuit Load Sharing Optional Settings
- No need to disconnect the main service wires.
- No extra breakers needed.
- Solar grid tie installation compatible.
- Real-time reading of the total power consumption of the electrical panel.
- Capable of reducing peek power demand utility costs to reduce your electrical bill
- Remote shutdown override equipped

- Advanced Safety Features such as Thermal Run Away Shutdown and Overcurrent protection

UL 3141, UL 1741, ULC-ORD-3141, CSA 22.2 14

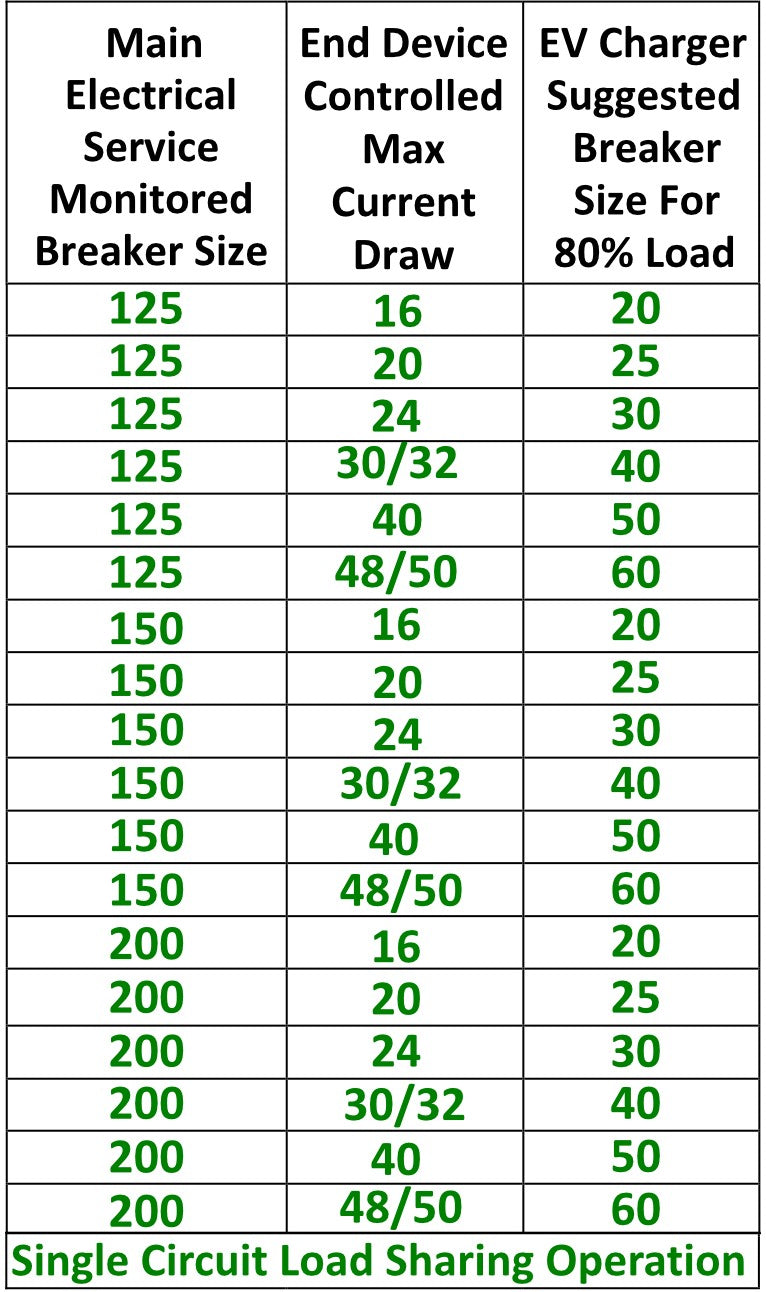

These can be used to control general-purpose devices that can tolerate load shedding with the same settings above, up to a max of 40FLA/50A. When using with general-purpose devices select the settings row with the rating just above what the device rating is.

Both 80% and 100% rated EV breaker settings are available for most combinations.

PN: PCS-240-50-200 & PCS-240-50-200-3R

PN: EVEMS240-200 & EVEMS240-200-3R
