Combined Splitter, or Splice Box with Breaker - (CSB)

Feed Combination Splice Box:

Provides a Bus Splice Rated of 125A and a Breaker that is tapped off of it in an enclosure.

Often used for splicing feeders up to 125A while providing a UL 489 breaker that can be used for either a device like an EV charger or landing a Solar PV system on it. This is often used as an alternative to upgrading a 100A panel when installation 9.6KW solar.

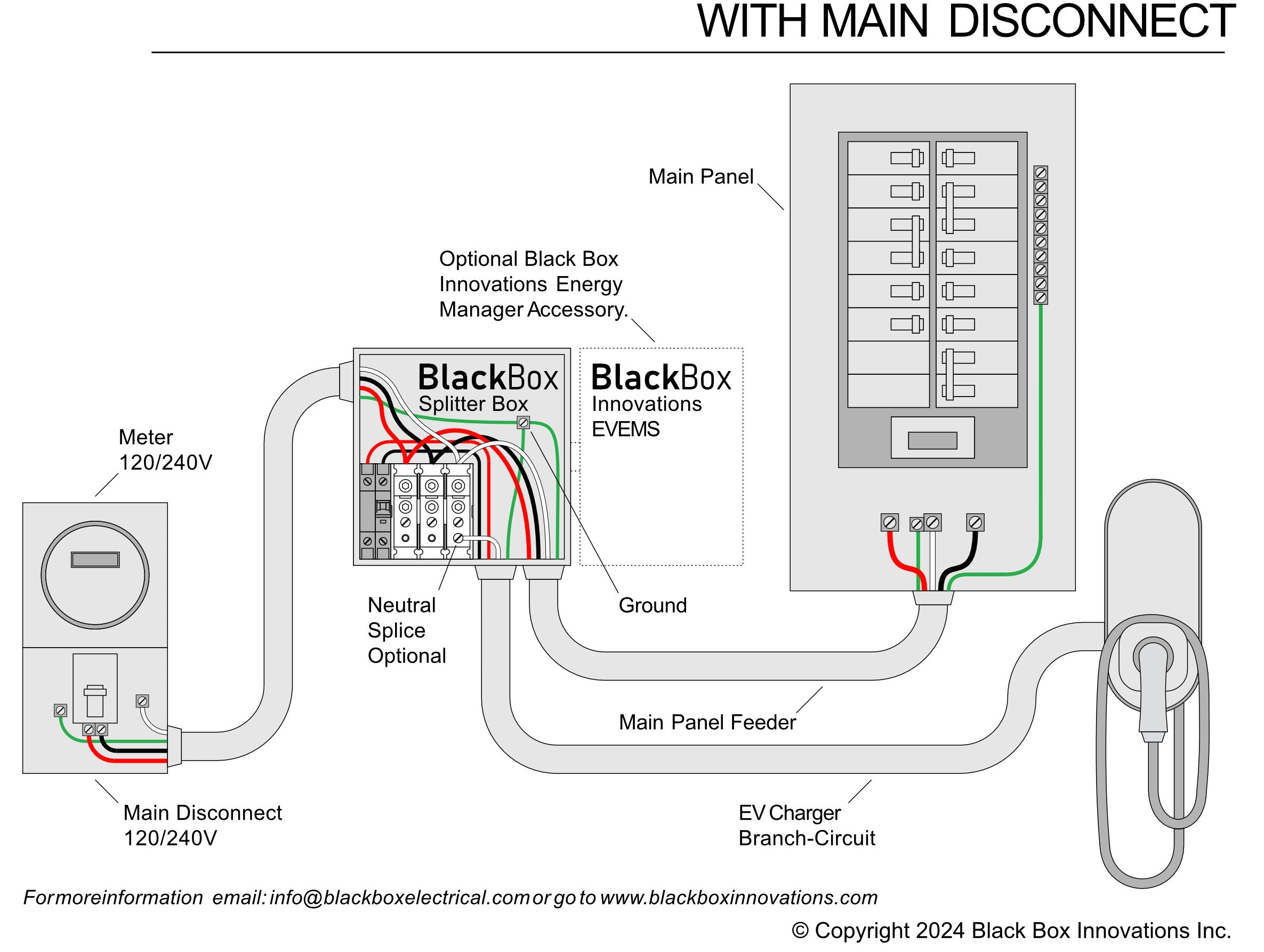

Another application is when the feeder lines or electrical meter is closer to the end device then the panel. This often applies when the main electrical room is near the parking area where EV charging is needed. Instead of installing wires to the suite panel this device can be installed near the electrical meter and provide power directly to the parking location instead of coming from the suite electrical panel farther away.

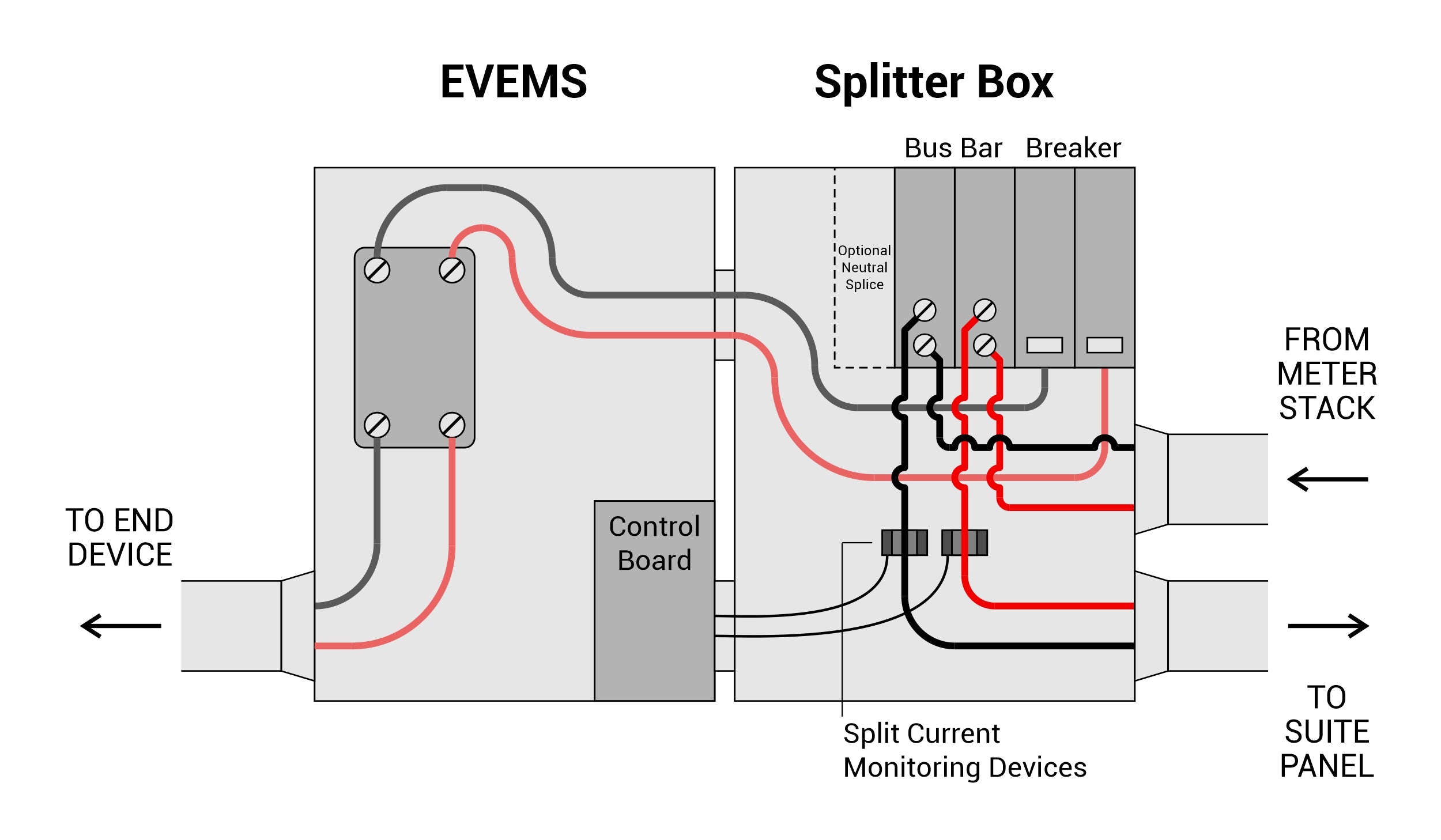

This device can be used as a stand alone product or as an easy add on to our Power Control System Line when electric load management is required.

Splitting up to 125A single phase main line while providing single or double pole breaker

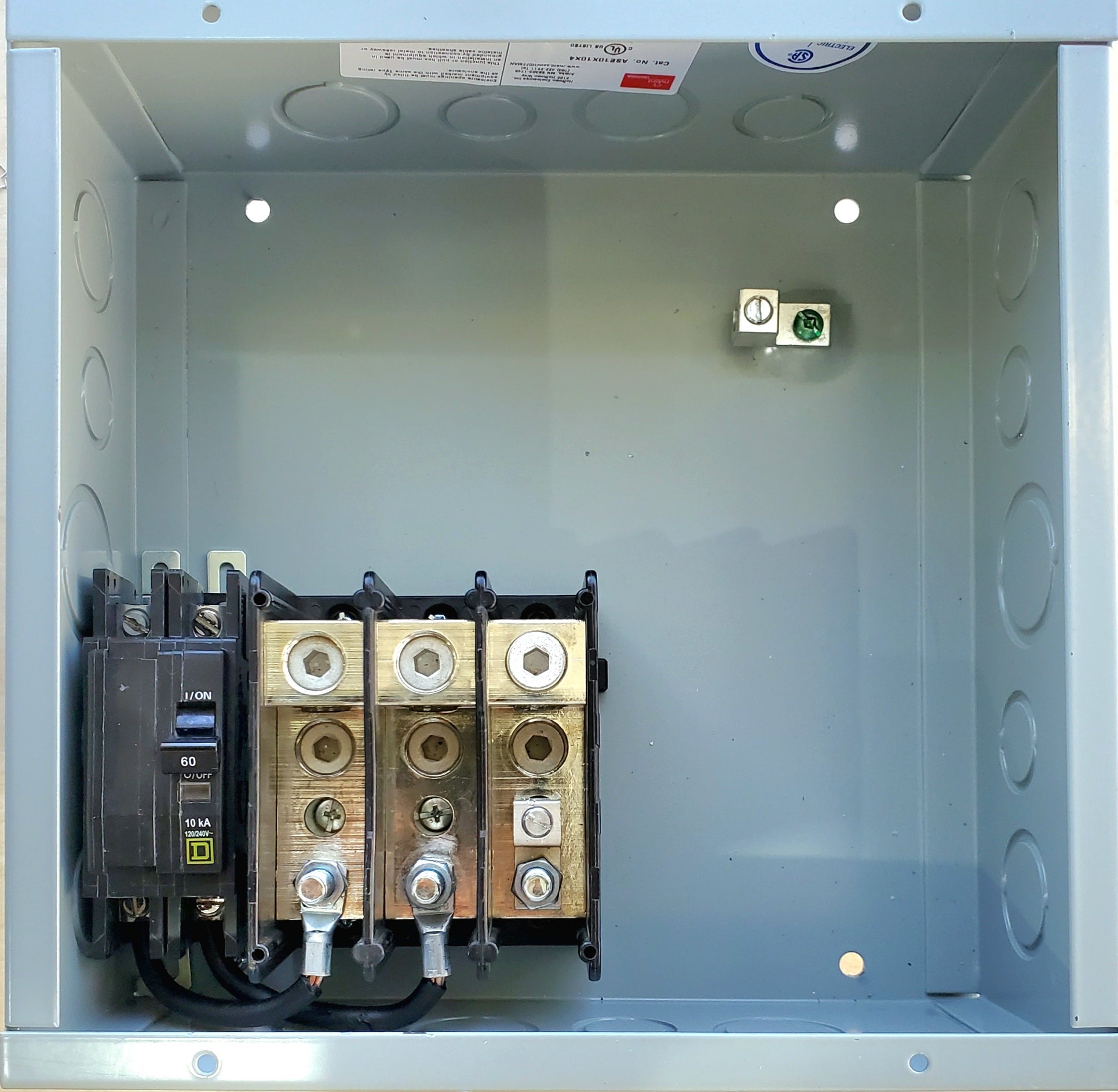

175A rated splice bus with 2/0 - 14 awg wire size. Can accommodate Aluminum or Copper wire

Size of breaker to match end device.

UL 3141, UL 1741, ULC-ORD-3141, CSA 22.2 14

Factory pre-assembly with energy manger is available at no extra charge upon request

Part Number Prefix: CSB
